FANUC Robots in Automotive Production: What They Do and Which Models to Know

The automotive industry has been the single largest buyer of industrial robots for decades. Roughly half of all industrial robots installed globally end up in a car factory or a parts plant feeding one. FANUC alone has a global installed base of over 1 million units, with a significant chunk of those machines running somewhere on an automotive production line. Walk through any major assembly plant anywhere in the world, and the yellow arms you see are there for a reason. FANUC built its reputation in automotive, and the model range shows it. The company makes more than 240 robot variants, from lightweight machines that handle delicate sensors to heavy lifters that move entire vehicle bodies between stations. For anyone sourcing a used FANUC robot, understanding where these machines fit in the automotive process is the first step toward knowing which model to look for.

Where FANUC Robots Fit in Automotive Manufacturing

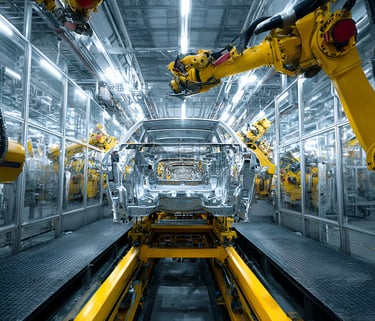

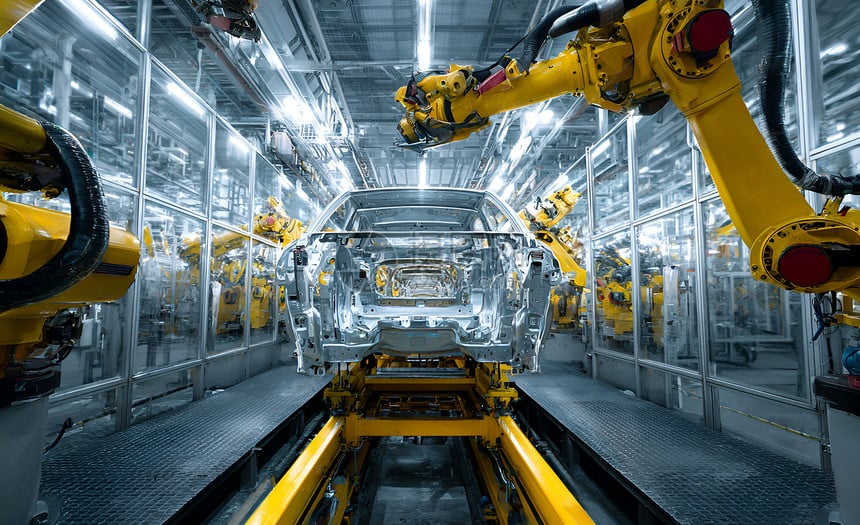

A car plant is not one big process. It is a series of connected stages, and FANUC robots show up in every one of them. The press shop stamps raw steel into body panels. Robots load blanks into presses and pull finished panels out, a job that calls for speed and long reach more than precision. The body shop is where things get heavy. Hundreds of spot welds join stamped panels into a complete body-in-white. FANUC R-2000iB robots dominate here, carrying welding guns that can weigh over a hundred kilograms and hitting the same weld points shift after shift. The paint shop is a different world entirely. Explosion-proof robots with long, slender arms apply primer, basecoat, and clearcoat with consistent film thickness. The general assembly line handles everything from windshield installation to seat loading. Lightweight six-axis robots and high-speed delta models work side by side here. Each stage demands a different kind of robot. FANUC makes all of them, and that breadth is why so many automotive robots on the used market wear yellow.

Welding: Where FANUC Earned Its Reputation

Spot welding is the backbone of any body shop, and FANUC's R-2000iB series is the machine most people picture when they think of automotive robots. Load capacity in the 165 to 210 kilogram range is standard for carrying heavy weld guns, and the R-30iB controller manages the precise timing and current control that a good spot weld demands. These robots run at high duty cycles for years, which means a used R-2000iB coming out of a body shop needs a close look at the wrist and the primary axes. The hours are real. Arc welding is a different side of the same coin. FANUC's Arc Mate 120iC handles thinner components like exhaust systems, seat frames, and suspension parts. These are lighter robots with six or ten kilogram payloads, but they demand higher path accuracy and smoother motion profiles than a spot welder. The good news for used buyers is that arc welding cells tend to come with power supplies and wire feeders already integrated, which saves real time during setup.

Painting and Sealing: Consistency You Can Measure

Painting a car body is unforgiving. Film thickness has to be consistent across complex curved surfaces, and any variation shows up in the showroom. FANUC's painting robots are built for this. They are long-reach, explosion-proof, and tuned for the kind of smooth, continuous motion that produces a factory finish. But painting is not the only thing happening in the paint shop. Sealing and adhesive application are just as critical. Robots apply structural adhesive to body panels, seal seams against water intrusion, and lay a precise bead of urethane around the windshield opening. These applications depend on robot path accuracy and consistent travel speed, two things FANUC robots are known for. A used painting or sealing robot coming from an automotive plant will have been maintained to a high standard because downtime in the paint shop is measured in thousands of dollars per minute.

Assembly and Machine Tending

The general assembly line is where a car finally comes together, and it is the most mixed application environment in the plant. FANUC M-710iC robots handle mid-weight assembly tasks like installing instrument panels, glass, and seats. These are versatile six-axis machines with payloads in the fifty to seventy kilogram range. For lighter, faster work, the M-2iA delta robots place small parts and fasteners at speeds no human can match. On the heavy end, M-900iA robots lift entire vehicle bodies or large castings between conveyors. These are six hundred kilogram payload machines, built like tanks, and they are the unsung heroes of the transfer line. In the press shop, FANUC robots feed blanks and extract stamped panels at a pace that sets the tempo for the entire plant. A used machine tending robot from an automotive environment often has high cycle counts but relatively clean mechanical condition compared to welding robots. No spatter, no fumes, just mechanical repetition.

What This Means for a Used Robot Buyer

A used FANUC robot that spent its life in a car plant is not a mystery. It is a known quantity with a known history. The key is matching the model to the application and knowing what to inspect. If you are buying an R-2000iB spot welding robot, pay attention to the wrist axes and the primary arm. Those joints absorbed the weight of the weld gun through millions of cycles. Ask for backlash measurements. If you are buying an Arc Mate, check that the welding software is installed and licensed, and confirm the wire feeder condition. If you are buying a painting robot, verify the controller's process software and check the condition of the paint lines and seals. A good rule of thumb is that robots from the body shop need the closest mechanical inspection. Robots from assembly and paint tend to be cleaner but may have high cycle counts. Either way, a FANUC robot with a documented inspection history is worth more than one without, because the automotive application environment is too demanding to take condition reports on faith. The models to watch for on the used market include the R-2000iB series for heavy spot welding, the Arc Mate 120iC for arc welding, the M-710iC for mid-weight assembly, and the M-900iA for heavy material handling.

This guide was prepared by Tyche Robotic, a supplier of refurbished six-axis industrial robots serving integrators and resellers in Latin America, Southeast Asia, and Europe.
