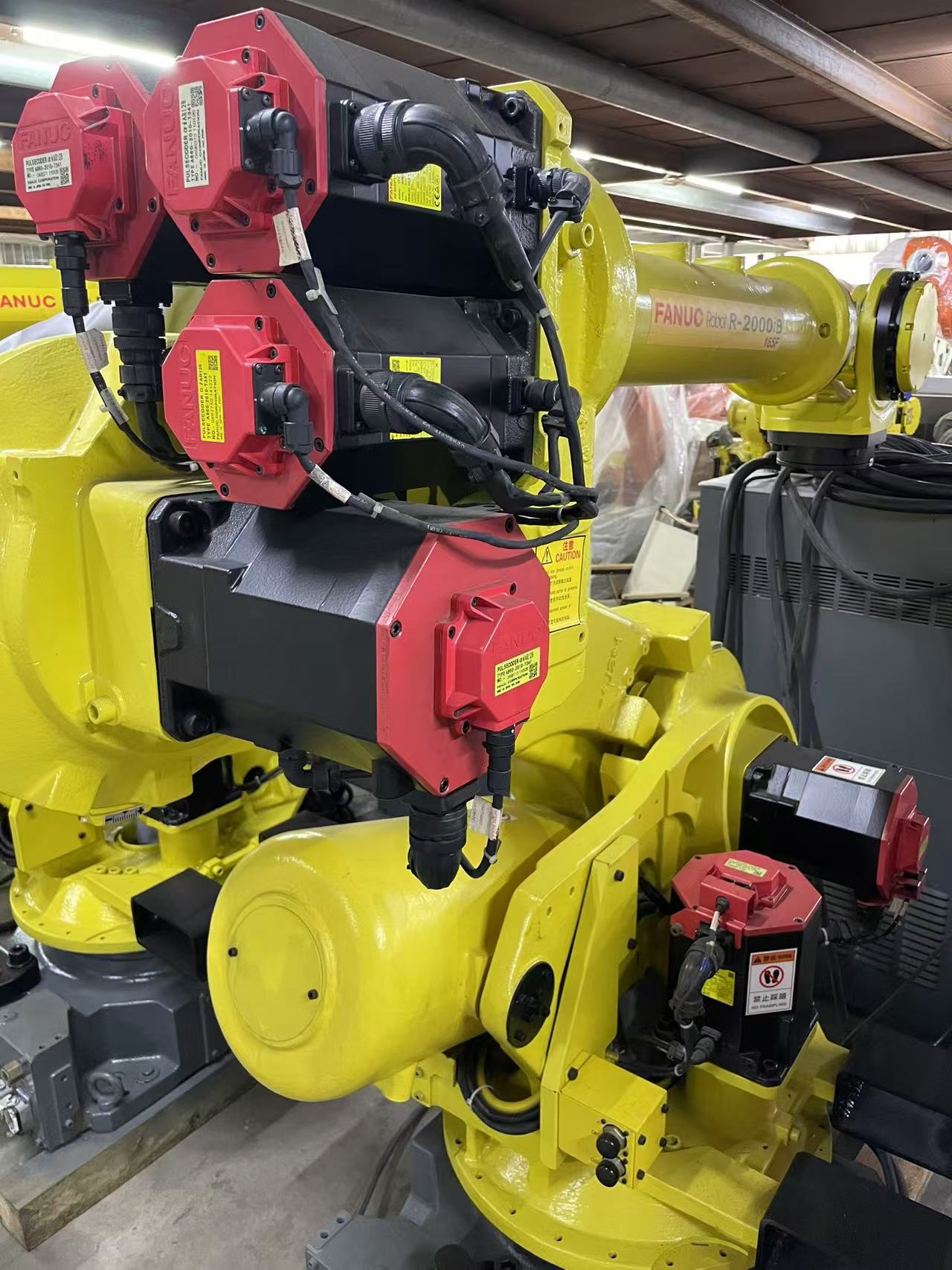

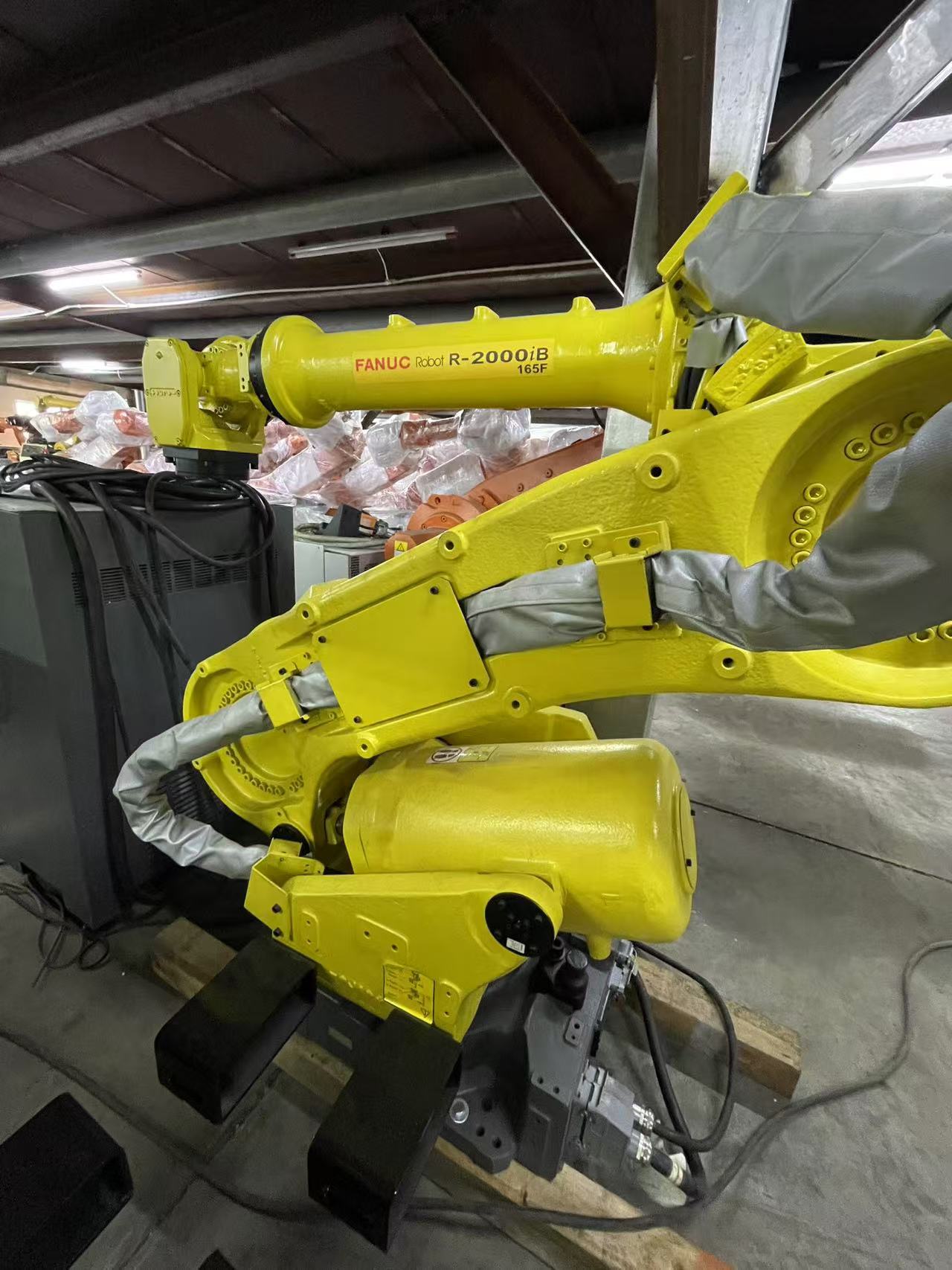

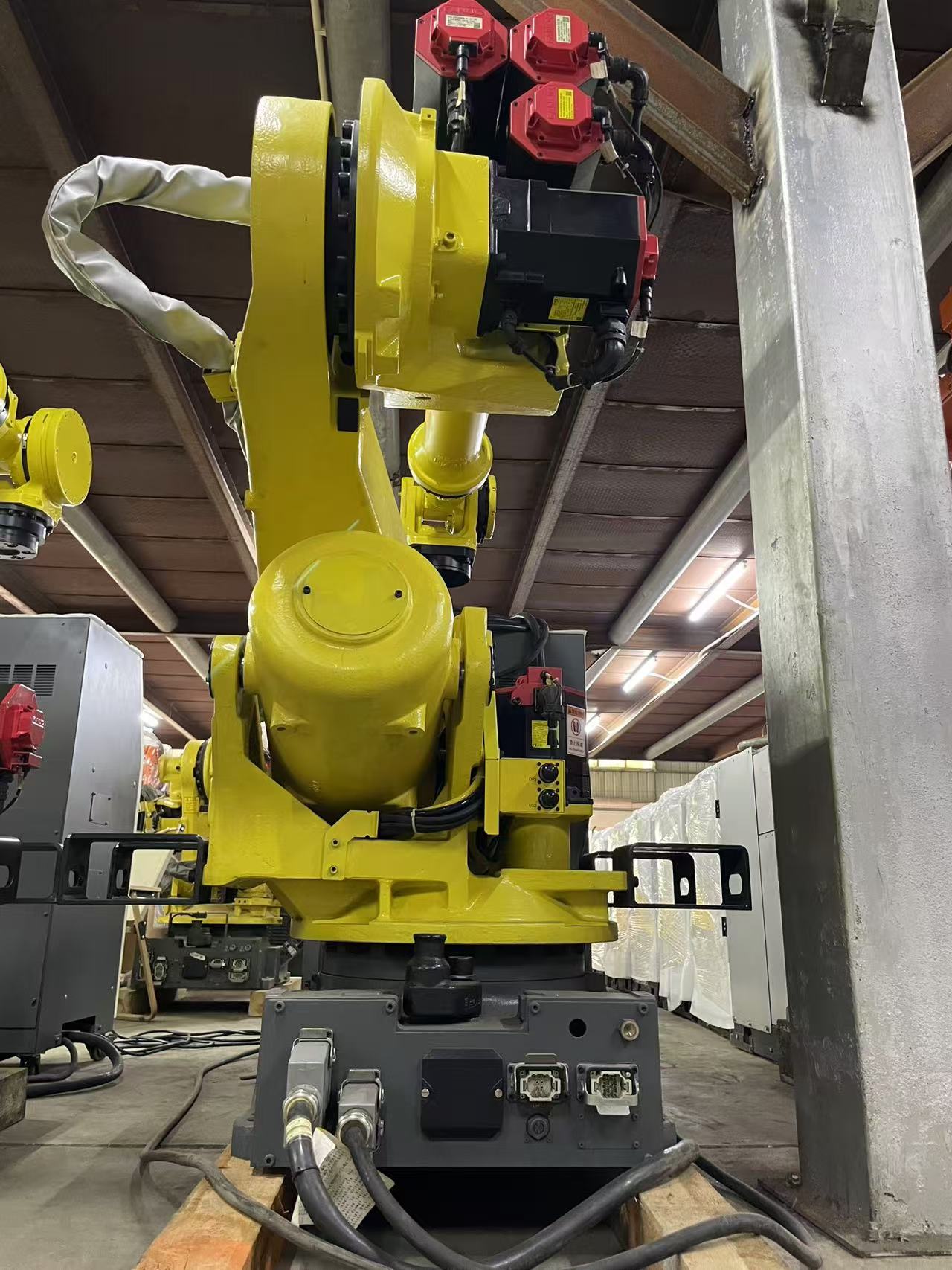

2014 FANUC R2000iB/200R industrial robot

FANUC R-2000iB/200R is a heavy-duty 6-axis articulated industrial robot designed for high-payload applications requiring a large working envelope. The “R” configuration is rack-mounted, making it suitable for production cells where the robot is installed on an elevated or specially designed mounting structure. FANUC specifies a 200 kg payload and 3,095 mm reach.

It is well suited to heavy material handling, automotive manufacturing, spot welding, machine tending, palletizing, press handling, and other large-component automation applications. The robot has approximately ±0.3 mm repeatability and a mechanical mass of around 1,540 kg.

Key Specifications:

Robot type: 6-axis articulated robot
Payload: 200 kg
Maximum reach: 3,095 mm
Repeatability: ±0.3 mm
Robot mass: Approx. 1,540 kg
Installation: Rack mount
Typical applications: Heavy material handling, spot welding, machine tending, palletizing, press handling, and automotive production
Controller: Typically FANUC R-J3iC / R-30iA depending on the individual robot and generation
