What Is a Robot Teach Pendant? How They Work and How the Big Four Build Them

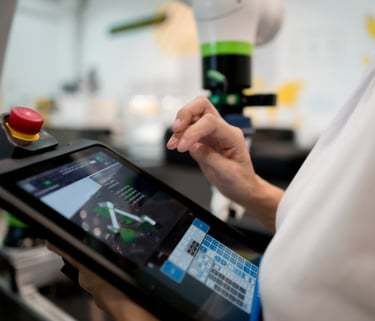

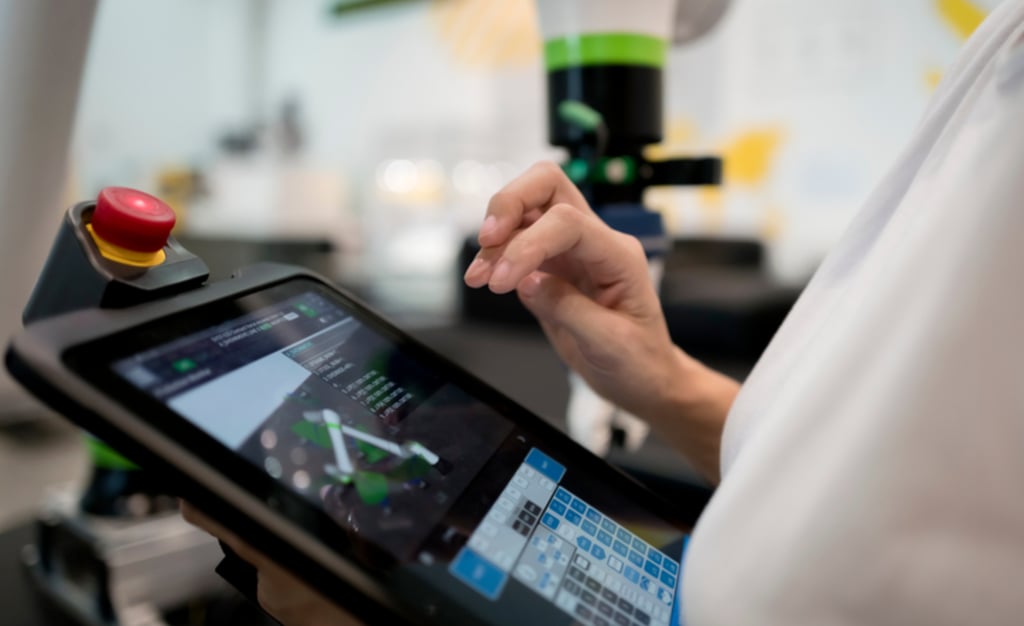

A robot teach pendant is the handheld control panel that connects an operator to a robot. It looks like a rugged tablet on a cable, but it is the single most important tool for programming, moving, and troubleshooting a robot. Without it, the robot can still run a pre-loaded program if someone presses the start button, but no one can write new instructions, adjust a weld path, or figure out why the cell stopped. The teach pendant is the interface between human intention and machine motion, and every operator who has ever jogged a six-axis arm into position knows what it feels like to hold one.

What a Teach Pendant Actually Does

A teach pendant has three main functions. The first is jogging. The operator uses buttons, a touchscreen, or a joystick to move the robot arm manually, positioning it point by point to define the path the robot will follow when it runs. The second is programming. The operator writes, edits, and saves the robot's motion instructions, logic sequences, and process parameters directly on the pendant. The third is diagnostics. When something goes wrong, the pendant displays fault codes, error messages, and system status. The operator uses it to identify the problem, clear alarms, and get the cell back into production. A teach pendant is not just a programming tool. It is the window into the robot's brain, and for most operators, it is the only part of the controller they ever touch.

The Safety Features You Need to Know

Two physical features on a teach pendant are not about programming. They are about keeping people alive. The enabling switch is a three-position button, usually located on the side or back of the pendant where the operator's hand naturally grips it. When the switch is not pressed, the robot cannot move. When it is pressed to the middle position, the robot can be jogged. When it is pressed all the way down or released entirely, the robot stops immediately. This design means that if an operator panics and either squeezes harder or lets go, the robot stops. The emergency stop button is the large red mushroom button that every pendant carries. It shuts down the entire cell when pressed and must be manually reset before the robot can move again. These two features are required by ISO 10218, the international safety standard for industrial robots, and they are present on every teach pendant from every major brand.

How the Big Four Design Their Teach Pendants

Every robot brand makes its own teach pendant, and while they all serve the same functions, the look and feel differ enough that operators tend to develop strong preferences. FANUC's iPendant ships with the R-30iB controller. It has a color touchscreen with physical membrane keys around the edges, and it can display iRVision images directly, so the operator can see what the robot's camera sees without walking to a separate monitor. ABB's FlexPendant runs on the IRC5 and OmniCore controllers. It weighs about one and a half kilograms and combines a touchscreen with a joystick and physical buttons. Programs written offline in RobotStudio can be transferred to the FlexPendant and tested on the floor. KUKA's smartPAD is the interface for the KRC4 and KRC5 controllers. It uses a large touchscreen running a Windows-based graphical interface, and it supports third-party applications, which makes it adaptable to non-standard integration setups. Yaskawa's programming pendant for the YRC1000 controller is compact and lightweight, with a touchscreen and physical keys, and it includes a multi-robot management screen so one pendant can monitor and control multiple robots in a cell.

What to Check on a Used Robot's Teach Pendant

When buying a used robot, the teach pendant is not a separate purchase. It comes with the machine, and its condition is part of the robot's value. A pendant that works perfectly is expected. A pendant with problems is an expensive replacement, and on older robots, finding a compatible unit can take weeks. The screen is the first thing to look at. Burn-in, the ghost image of a menu screen that never goes away, is common on pendants that have run the same program for years. Dead pixels or unresponsive touch zones make programming harder and should be noted. The physical keys and joystick are next. Membrane keys wear out and become sticky or unresponsive. A joystick that does not return to center cleanly will cause the robot to drift during jogging. The enabling switch and the emergency stop are safety devices. Test both. Press the enabling switch and confirm the robot can move. Release it and confirm the robot stops. Hit the emergency stop and confirm the cell shuts down and requires a manual reset. The cable that connects the pendant to the controller gets flexed, stepped on, and run over by carts. Look for cracks in the jacket, especially near the connector ends. The final check is compatibility. A teach pendant is married to a specific controller generation and software version. A pendant from an R-30iA will not work on an R-30iB without the correct firmware. Confirm that the pendant matches the controller it is being sold with.

This article was prepared by Tyche Robotic, a supplier of refurbished six-axis industrial robots serving integrators and resellers in Latin America, Southeast Asia, and Europe.
