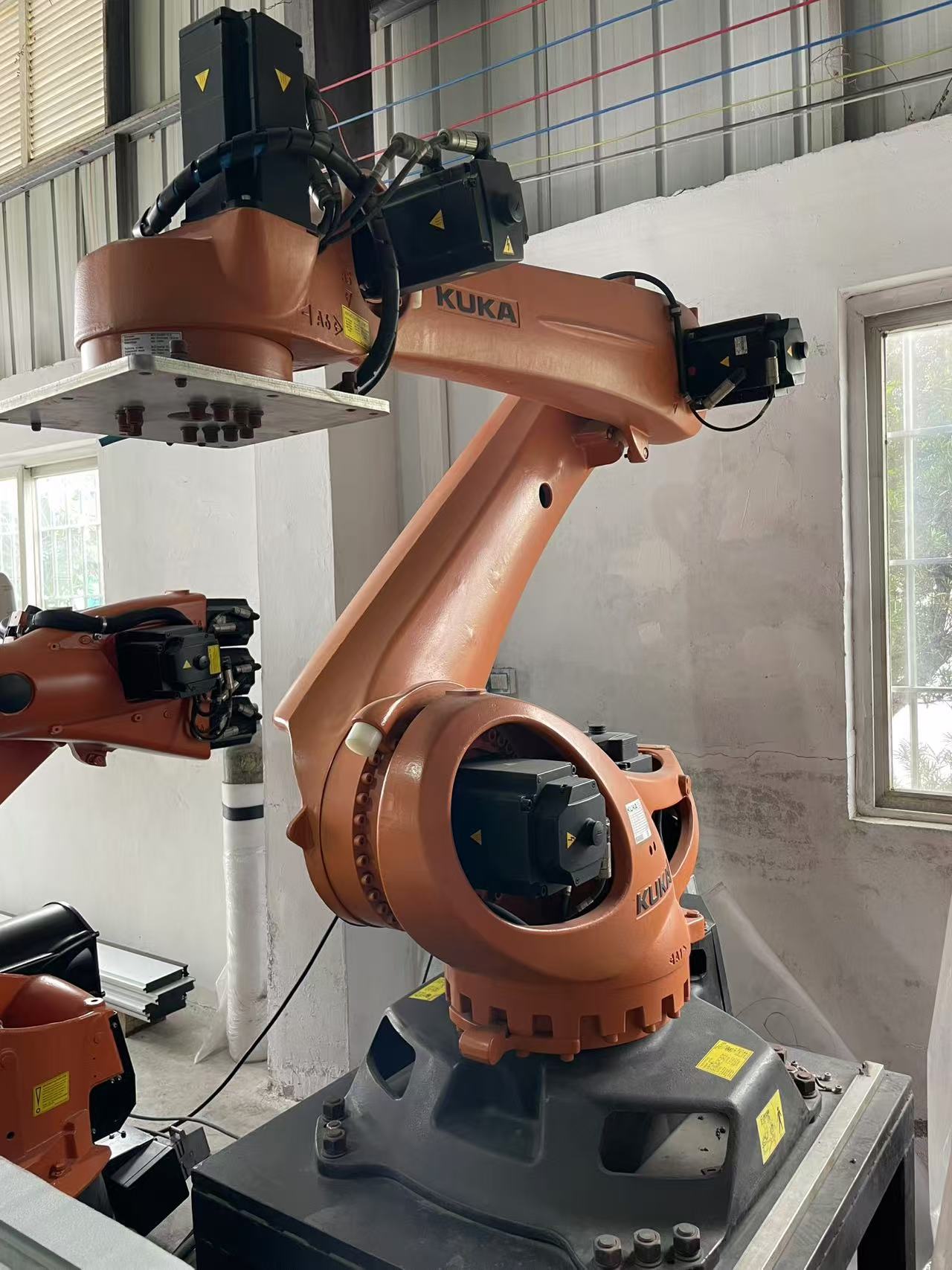

KUKA KR 180 R2900 is a heavy-duty 6-axis articulated industrial robot from KUKA’s KR QUANTEC family. It is designed for applications requiring a combination of high payload, long reach, precision, and reliable continuous operation. Typical applications include material handling, machine tending, palletizing, automotive manufacturing, welding, assembly, and handling of large components.
For the KR 180 R2900 prime version, KUKA specifies a 180 kg rated payload, 2,896 mm maximum reach, ±0.06 mm pose repeatability, and a robot weight of approximately 1,106 kg. It is floor-mounted and uses the KR C4 controller.
Key Specifications:
Robot type: 6-axis articulated industrial robot
Rated payload: 180 kg
Maximum reach: 2,896 mm
Repeatability: ±0.06 mm
Robot weight: Approx. 1,106 kg
Mounting: Floor
Protection: IP65; wrist IP65
Controller: KUKA KR C4
Typical applications: Material handling, machine tending, palletizing, welding, automotive production, assembly, and heavy-component handling |
