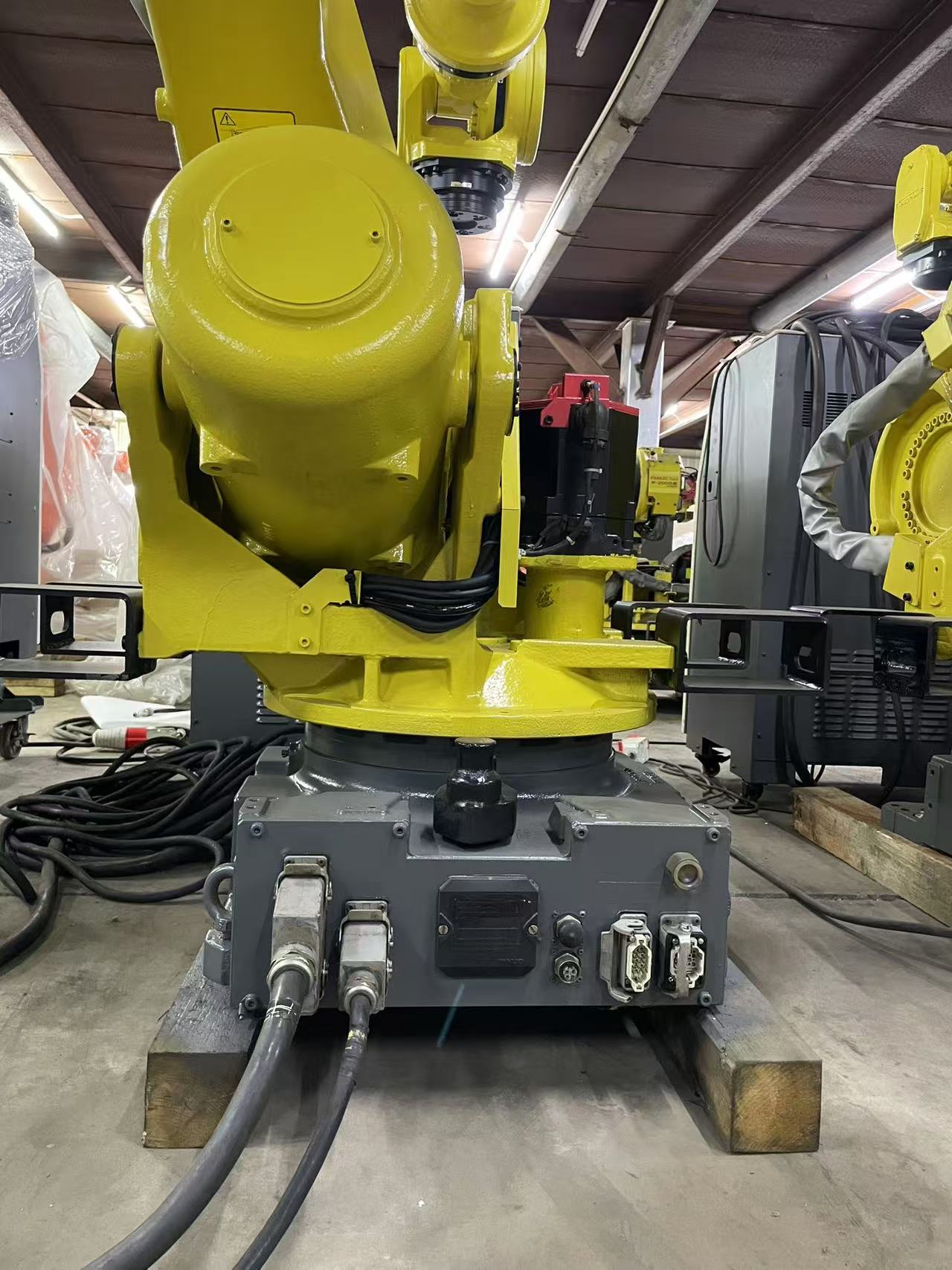

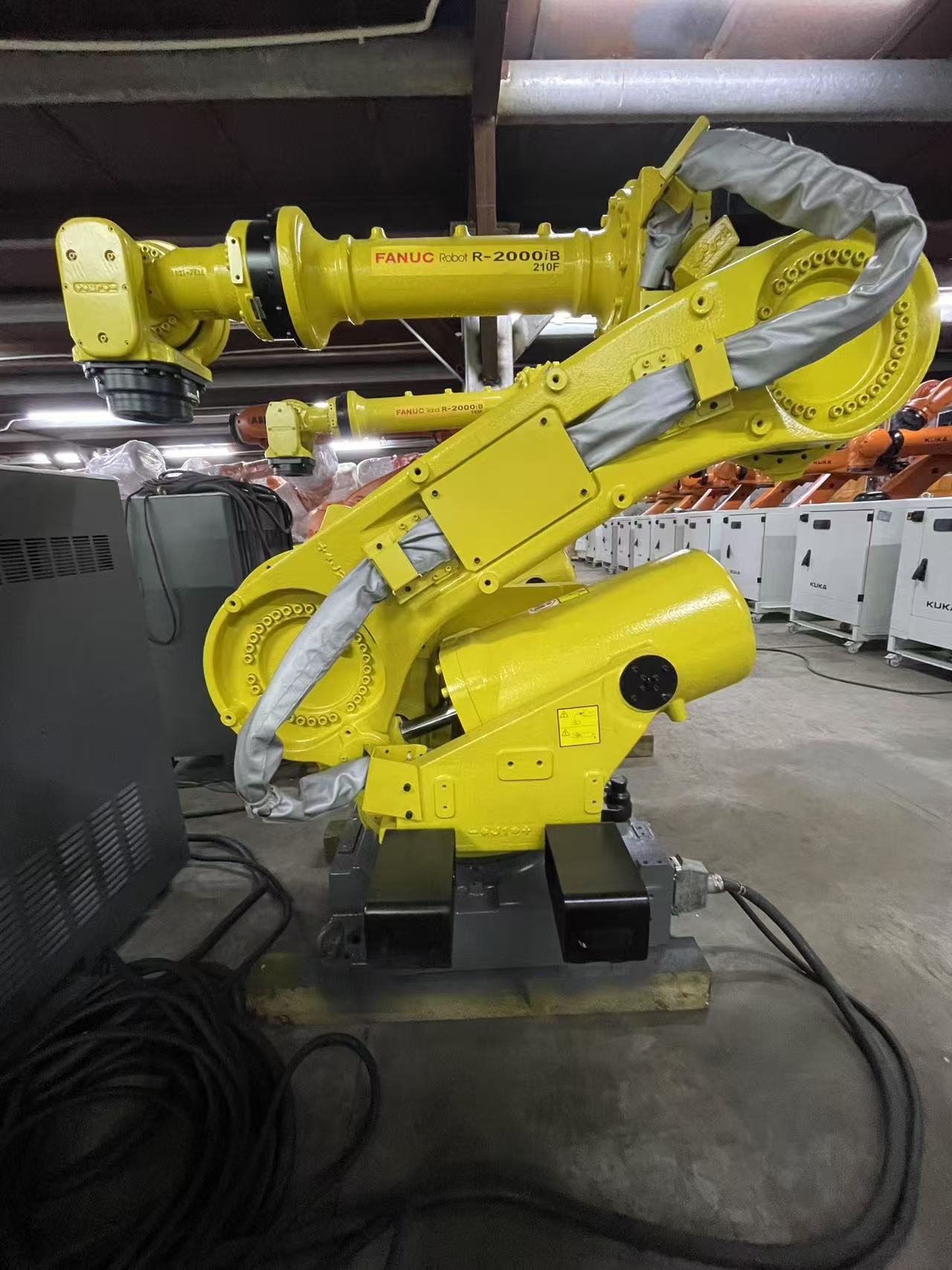

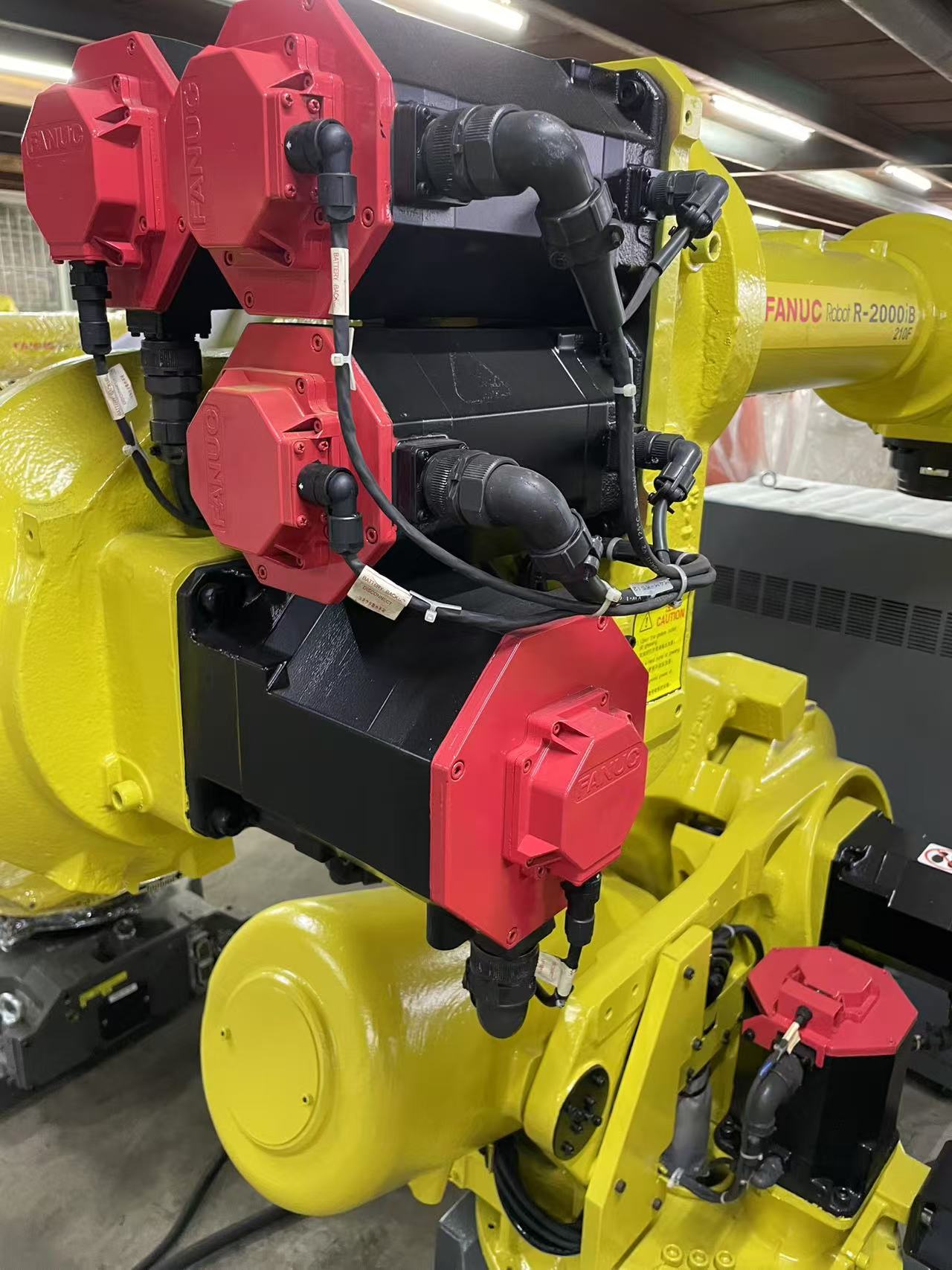

2014 FANUC R2000iB/210F industrial robot

FANUC R-2000iB/210F is a heavy-duty 6-axis articulated industrial robot designed for applications requiring high payload capacity, long reach, and reliable, repeatable motion. It is part of FANUC's R-2000iB family and is suitable for material handling, spot and resistance welding, machine tending, assembly, injection-molding automation, and heavy component handling.

The robot has a 210 kg payload capacity and a 2,655 mm horizontal reach. Its slim arm and wrist design help reduce interference with surrounding equipment while allowing access to areas above and behind the robot. FANUC specifications indicate ±0.3 mm repeatability and a mechanical mass of approximately 1,240 kg.

Key Specifications:

Robot type: 6-axis articulated industrial robot
Payload: 210 kg
Maximum reach: 2,655 mm
Repeatability: ±0.3 mm
Robot mass: Approx. 1,240 kg
Mounting: Floor
Typical controllers: FANUC R-J3iC / R-30iA
Typical applications: Material handling, spot welding, resistance welding, machine tending, assembly, machine loading, and injection-molding automation
