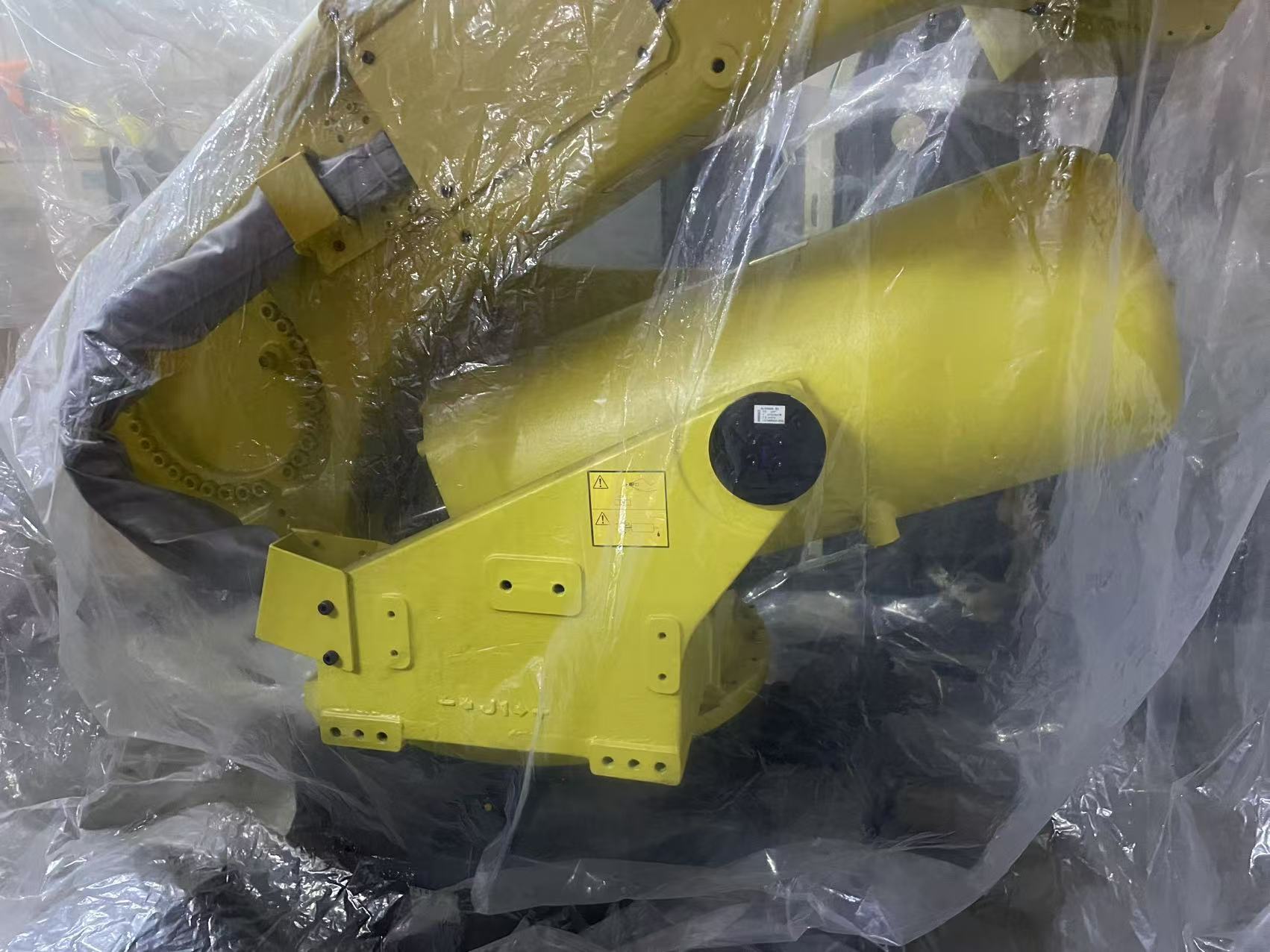

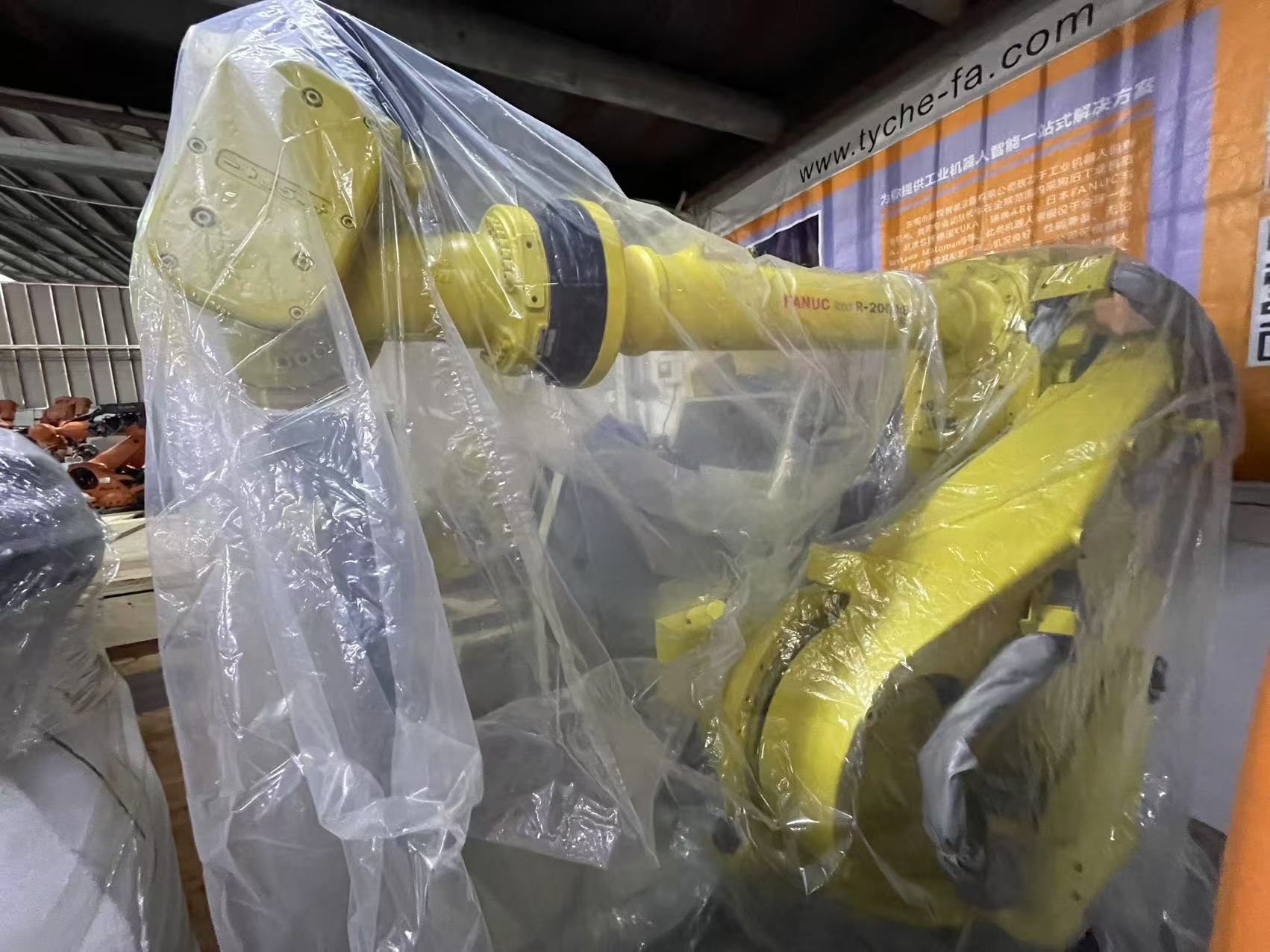

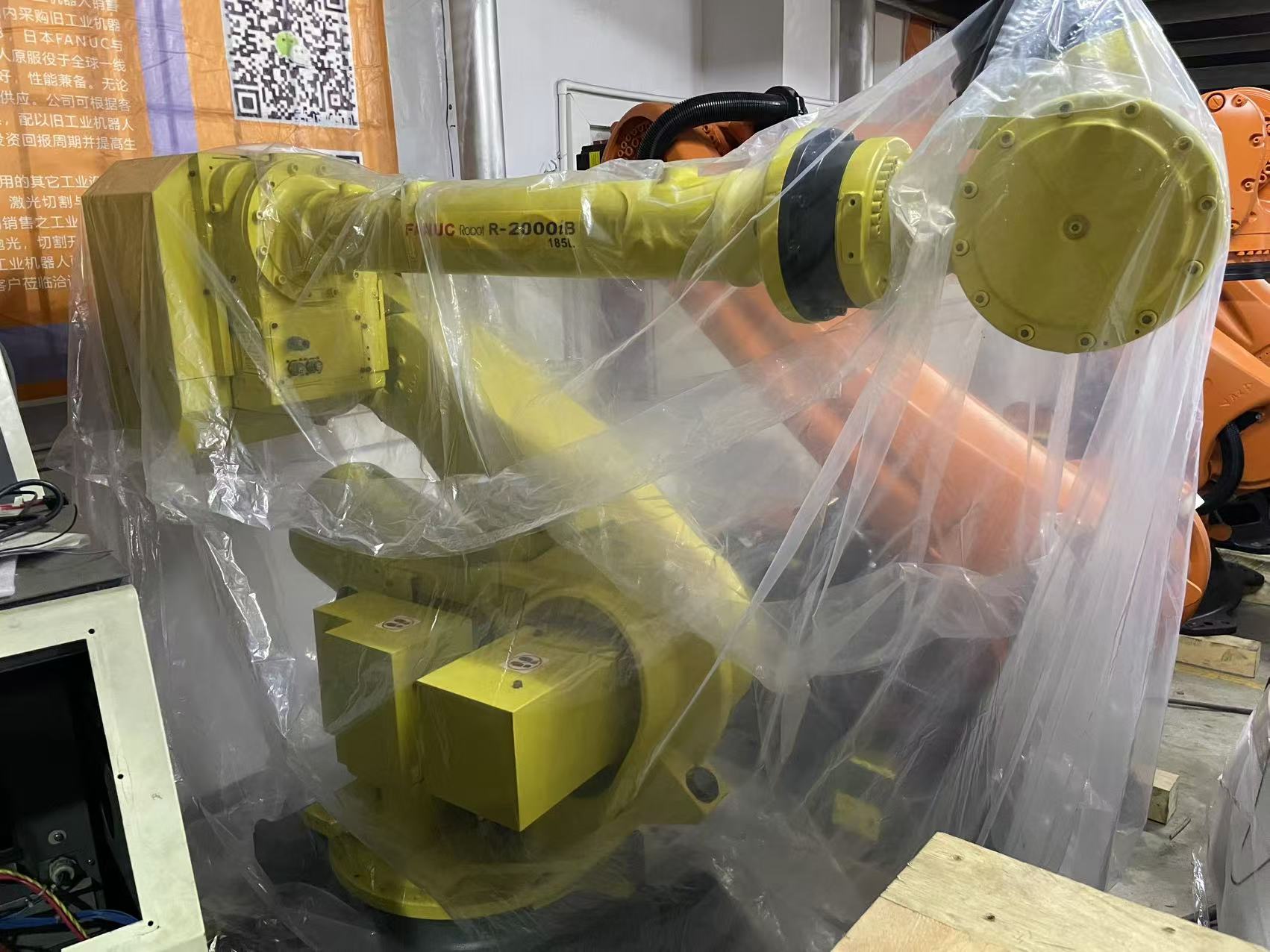

2018 FANUC R2000iB/185L industrial robot

FANUC R-2000iB/185L is a heavy-duty 6-axis articulated industrial robot designed for applications requiring a combination of high payload, extended reach, and reliable positioning. The “L” designation indicates the long-arm version, making it particularly suitable for large workpieces and production cells with a wide working envelope. FANUC specifies a 185 kg payload and 3,060 mm reach.

It is commonly used for material handling, machine tending, automotive manufacturing, spot welding, assembly, press handling, and other heavy-duty automation tasks.

Key Specifications:

Robot type: 6-axis articulated robot
Payload: 185 kg
Maximum reach: 3,060 mm
Repeatability: ±0.3 mm
Robot weight: Approx. 1,290 kg
Mounting: Floor
Protection: IP54/IP56 body; IP67 wrist and J3 arm
Typical controller: FANUC R-30iA / R-30iB, depending on configuration
Typical applications: Material handling, spot welding, machine tending, assembly, press handling, and automotive production
