2018 FANUC R2000IB 170CF industrial robot

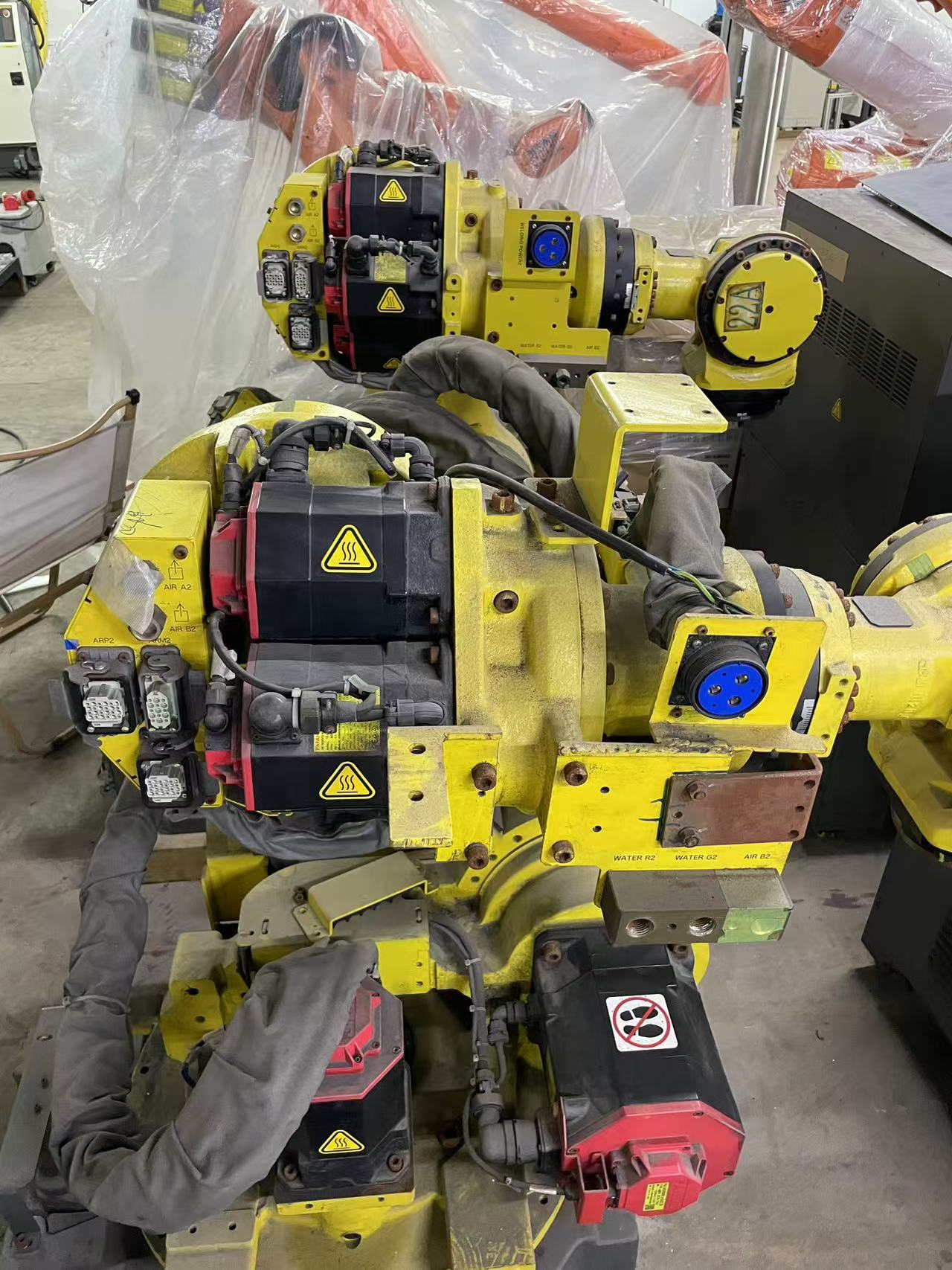

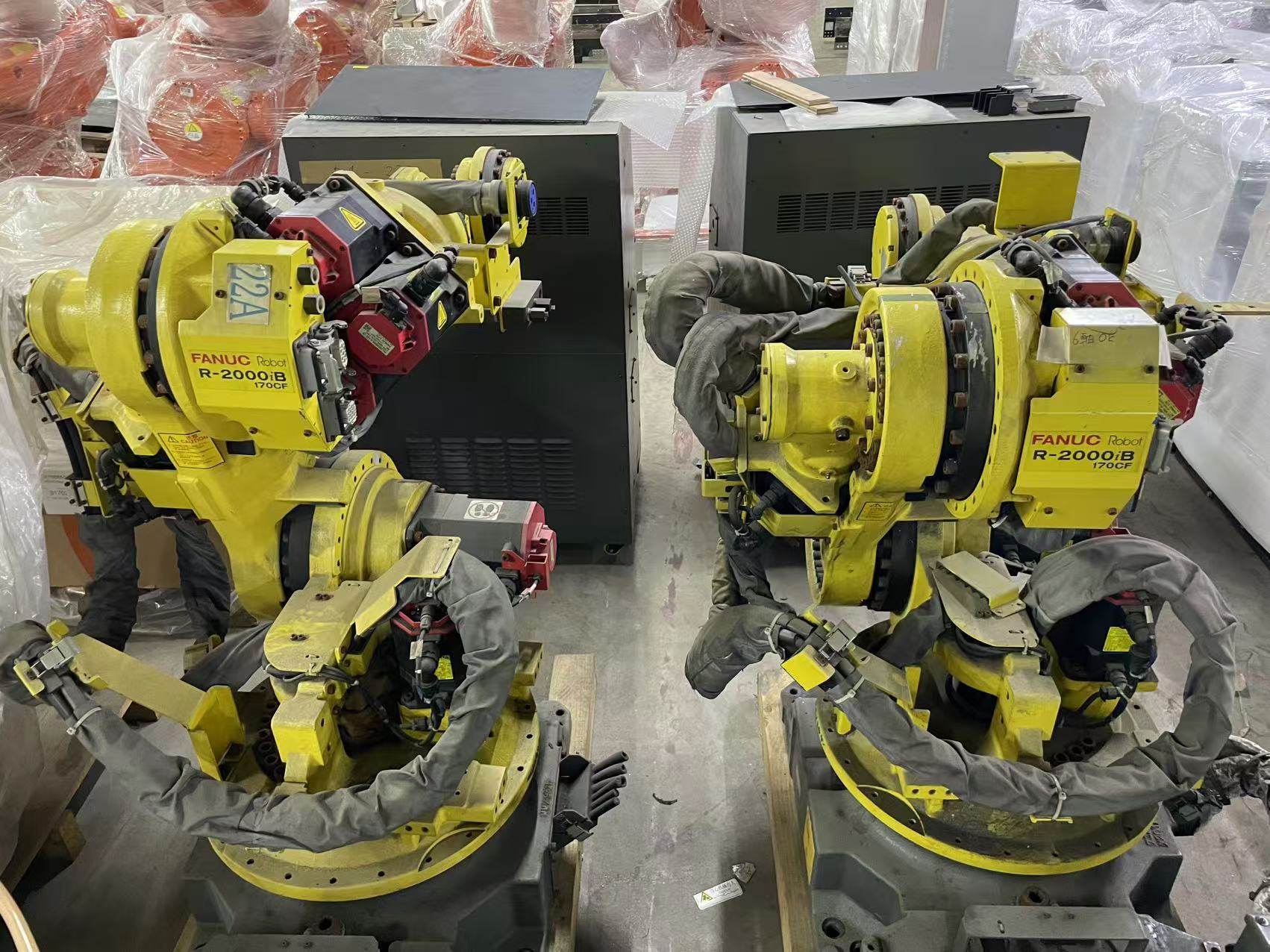

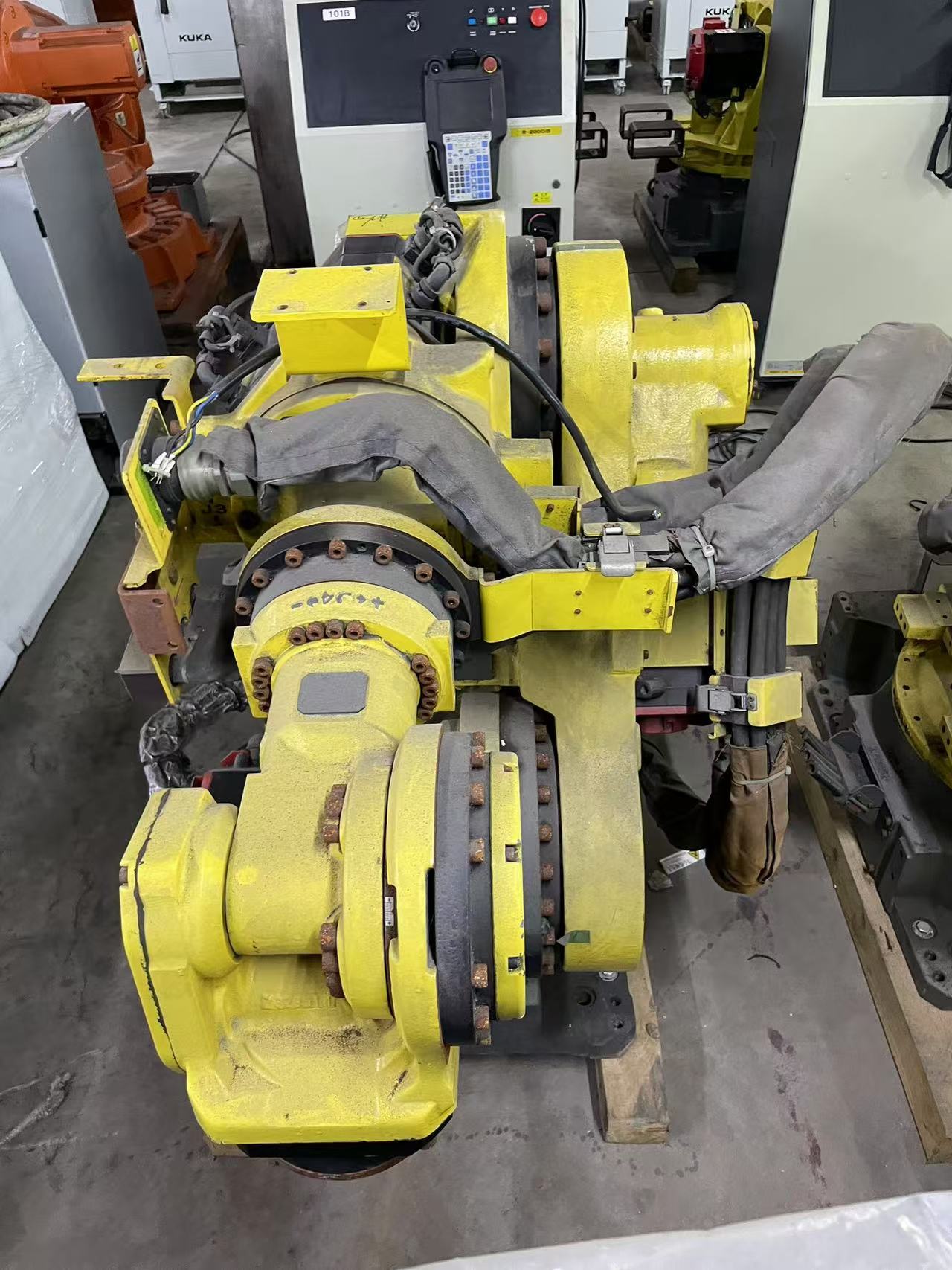

FANUC R-2000iB/170CF is a heavy-duty 6-axis articulated industrial robot designed for high-payload automation in a relatively compact footprint. The “CF” designation refers to the compact configuration, which provides a shorter reach than other R-2000iB variants while retaining a substantial payload capacity.

The robot offers a 170 kg payload and 1,520 mm reach, making it suitable for applications such as material handling, machine tending, assembly, press handling, and automotive manufacturing. FANUC specifies ±0.15 mm repeatability and a mechanical weight of approximately 800 kg.

Key Specifications:

Robot type: 6-axis articulated robot
Payload: 170 kg
Maximum reach: 1,520 mm
Repeatability: ±0.15 mm
Robot weight: Approx. 800 kg
Mounting: Floor or upside-down
Protection: IP54/IP56 body; IP67 wrist and J3 arm
Typical applications: Material handling, machine tending, assembly, press handling, automotive production, and heavy-component handling
