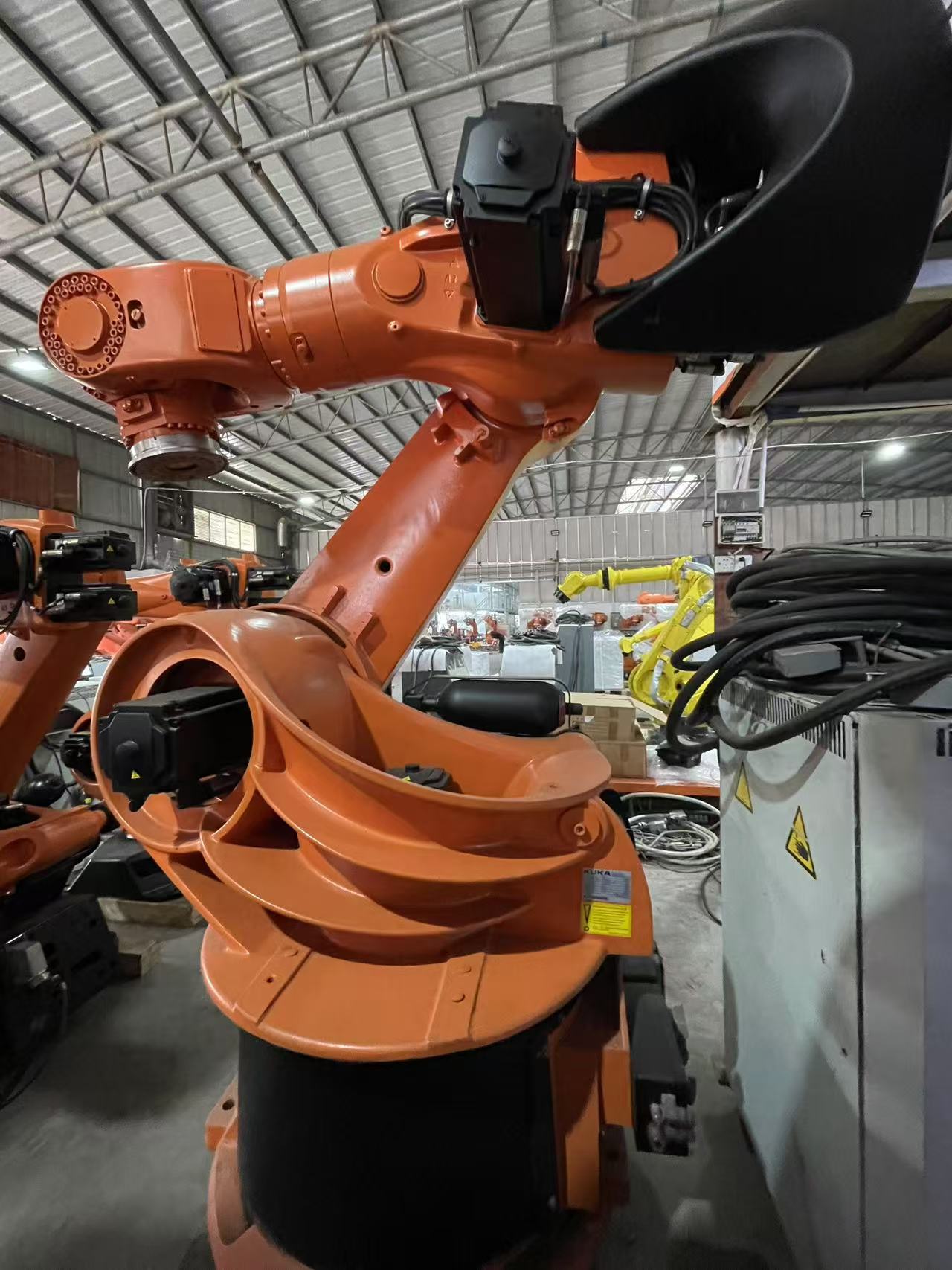

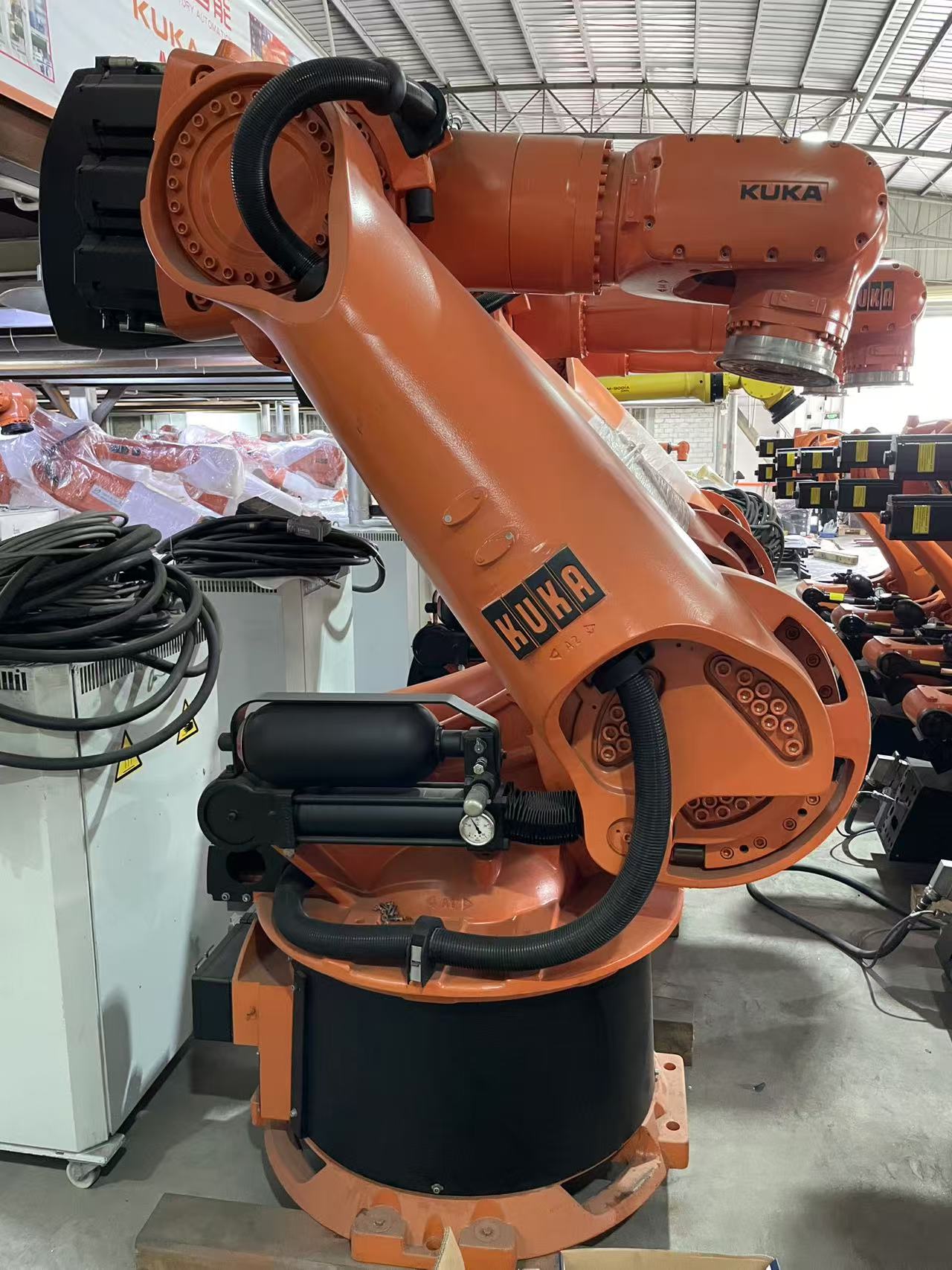

2015 KUKA KR360-2 industrial robot

KUKA KR 360-2 is a heavy-duty 6-axis articulated industrial robot designed for handling large and heavy components. It belongs to KUKA’s earlier KR 360-2 / KR 500-2 generation and was commonly used for heavy material handling, machining, foundry applications, automotive manufacturing, palletizing, and large-component processing.

Depending on the exact configuration, the KR 360-2 family offered different payload/reach combinations. The KR 360 L240-2, for example, provides a 240 kg payload and approximately 3,326 mm reach.

Key Characteristics:

Robot type: 6-axis articulated industrial robot
Payload: Up to approximately 360 kg, depending on configuration
Reach: Configuration-dependent; approximately 2.8–3.3 m
Repeatability: Approximately ±0.08 mm
Mounting: Floor or ceiling, depending on version
Controller: Typically KUKA KR C2, including the KR C2 edition 2005 generation
Typical applications: Heavy material handling, foundry work, machining, palletizing, automotive production, and large-component handling
