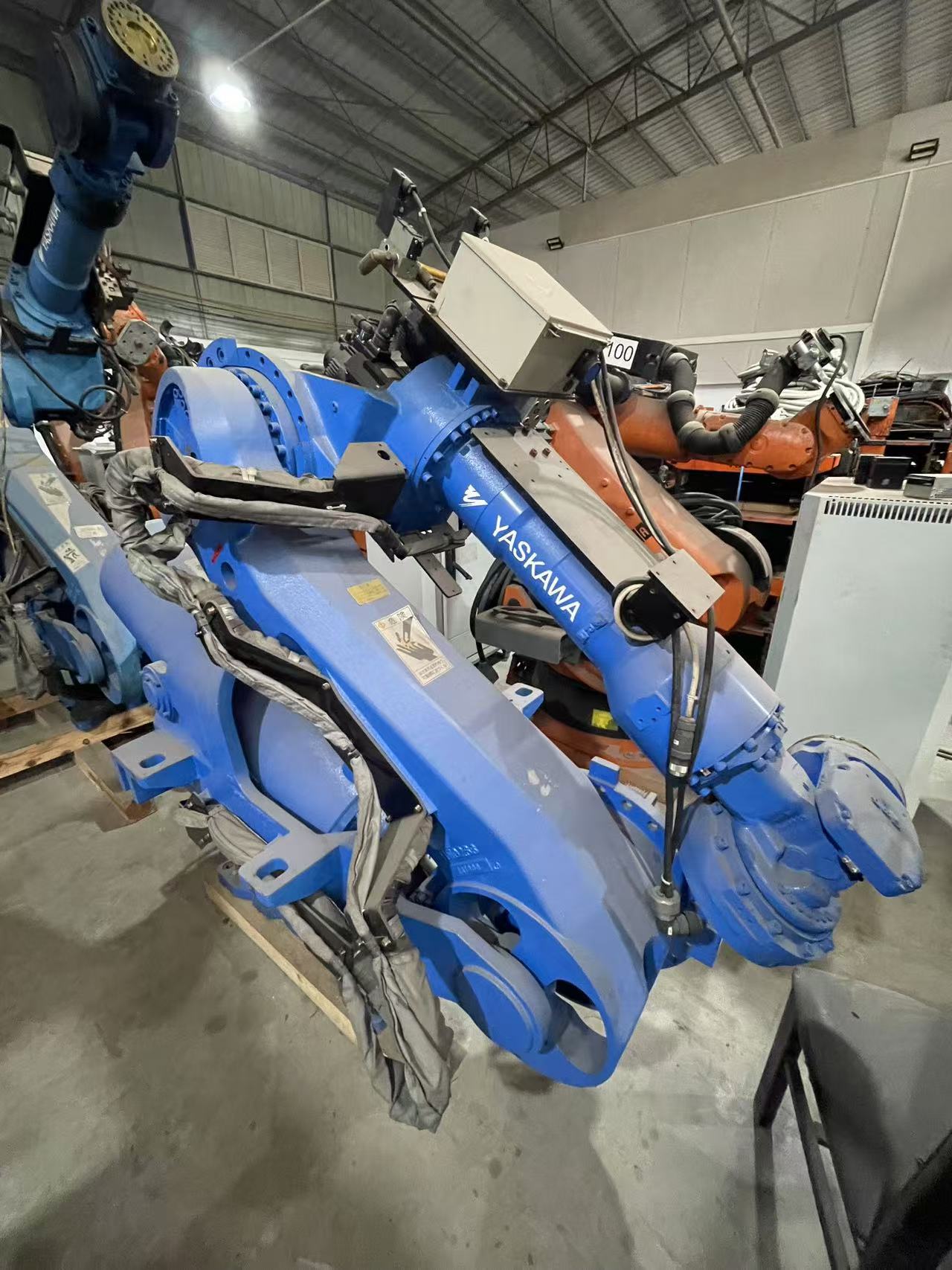

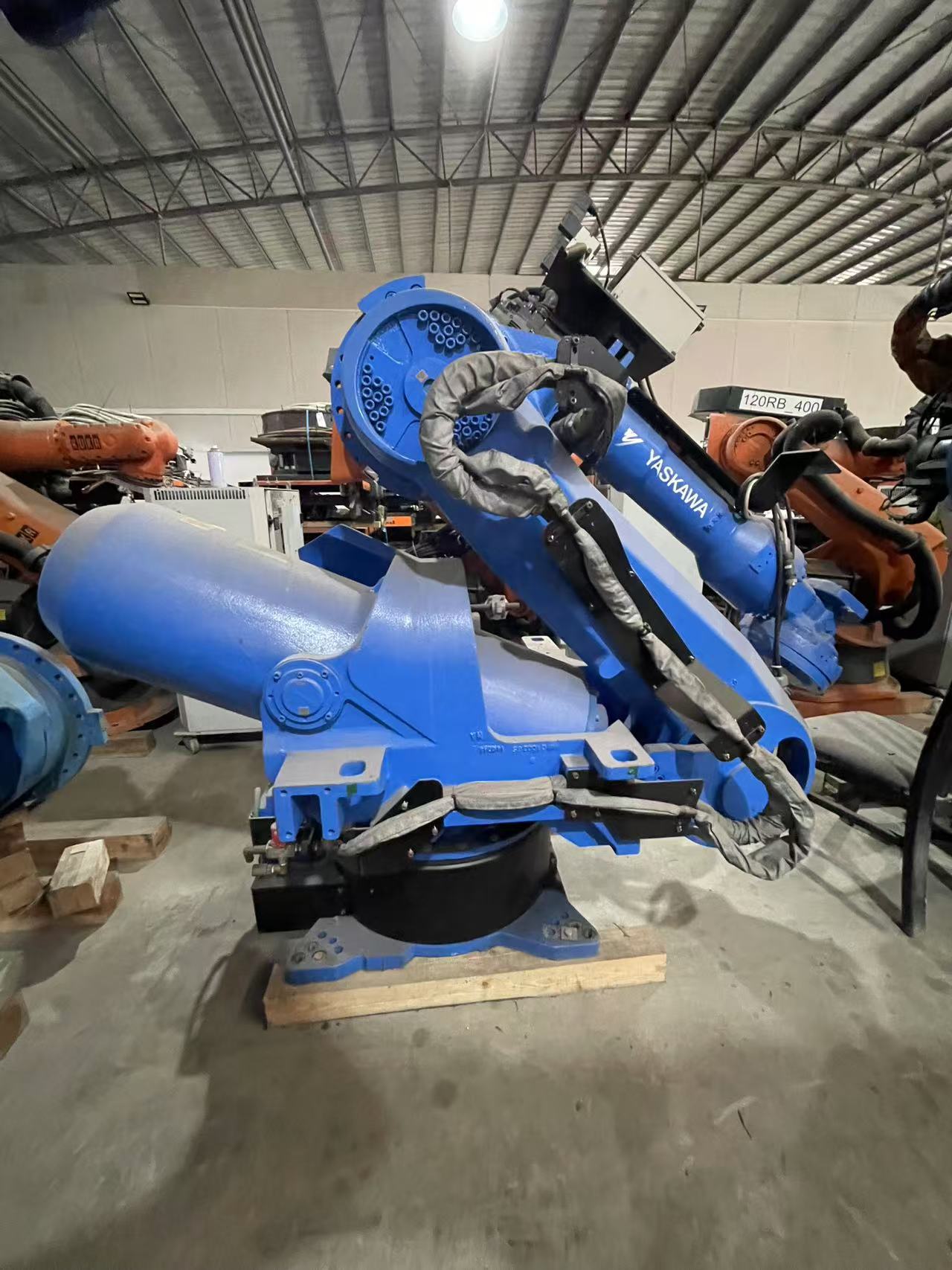

2014 YASKAWA ES200RD industrial robot

YASKAWA MOTOMAN ES200RD is a heavy-duty 6-axis articulated industrial robot designed primarily for spot welding and heavy material-handling applications. Its shelf/rack-mounted design provides a large working envelope and makes it particularly suitable for automotive production lines, press tending, and handling large components.

The ES200RD offers a 200 kg payload and approximately 3,140 mm horizontal reach. It has a maximum vertical working range of about 4,782 mm, making it suitable for large production cells. The robot has approximately ±2 mm repeatability and weighs around 1,570 kg.

Key Specifications:

Robot type: 6-axis articulated robot
Payload: 200 kg
Horizontal reach: 3,140 mm
Vertical working range: Approx. 4,782 mm
Repeatability: ±2 mm
Robot weight: Approx. 1,570 kg
Mounting: Shelf/rack-mounted
Typical controller: Yaskawa DX100
Typical applications: Spot welding, press tending, material handling, machine tending, palletizing and heavy-component handling
