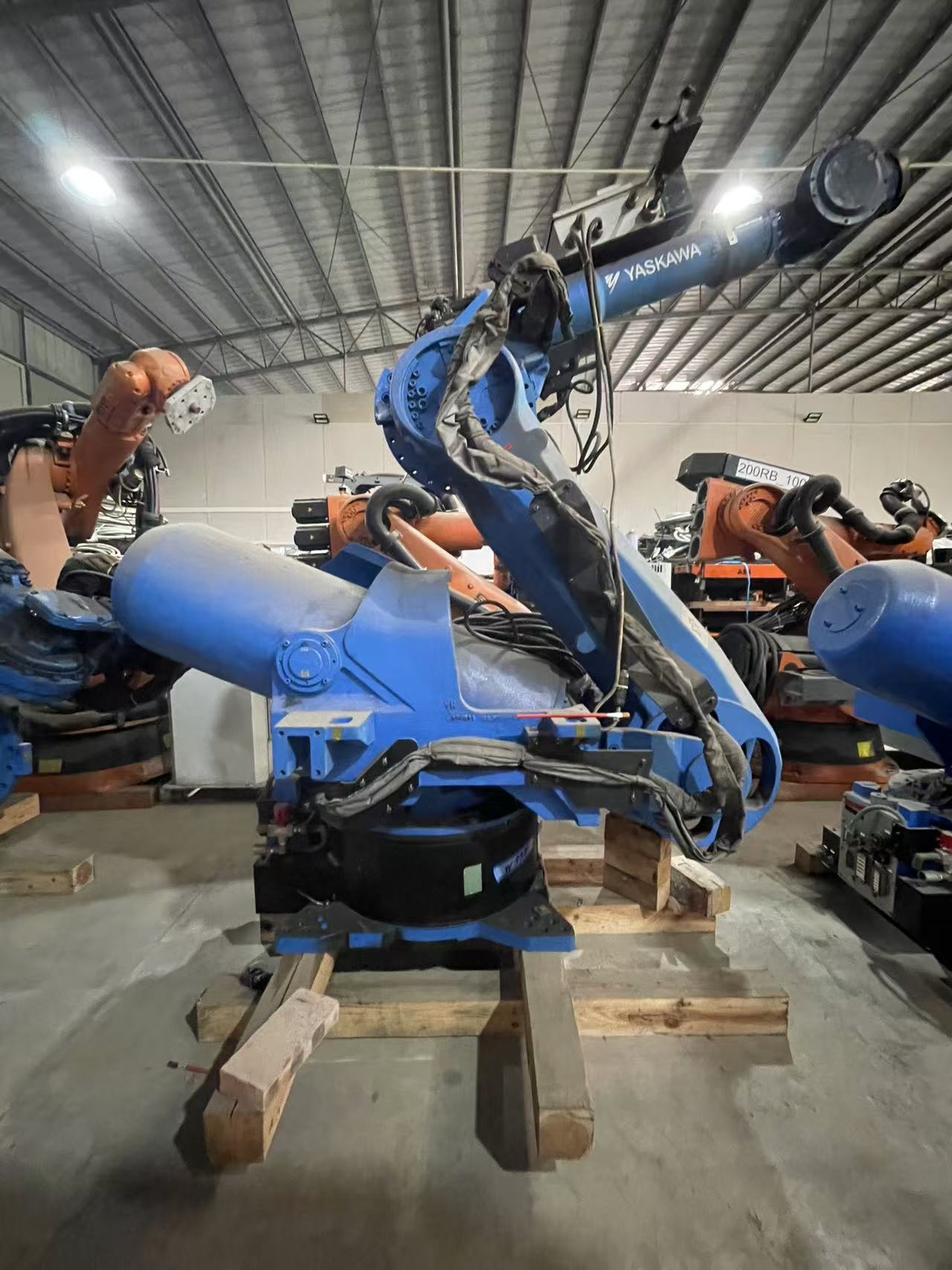

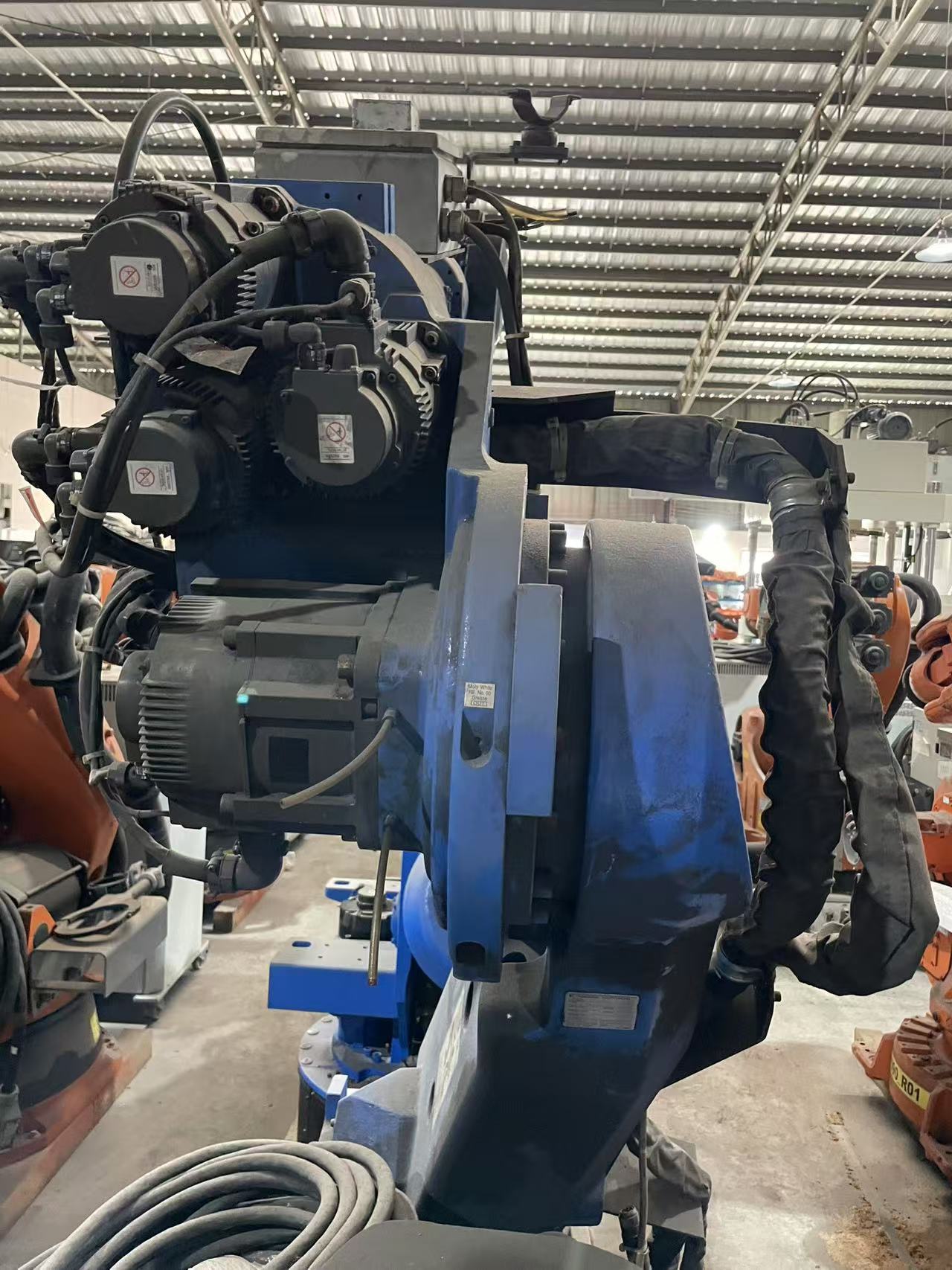

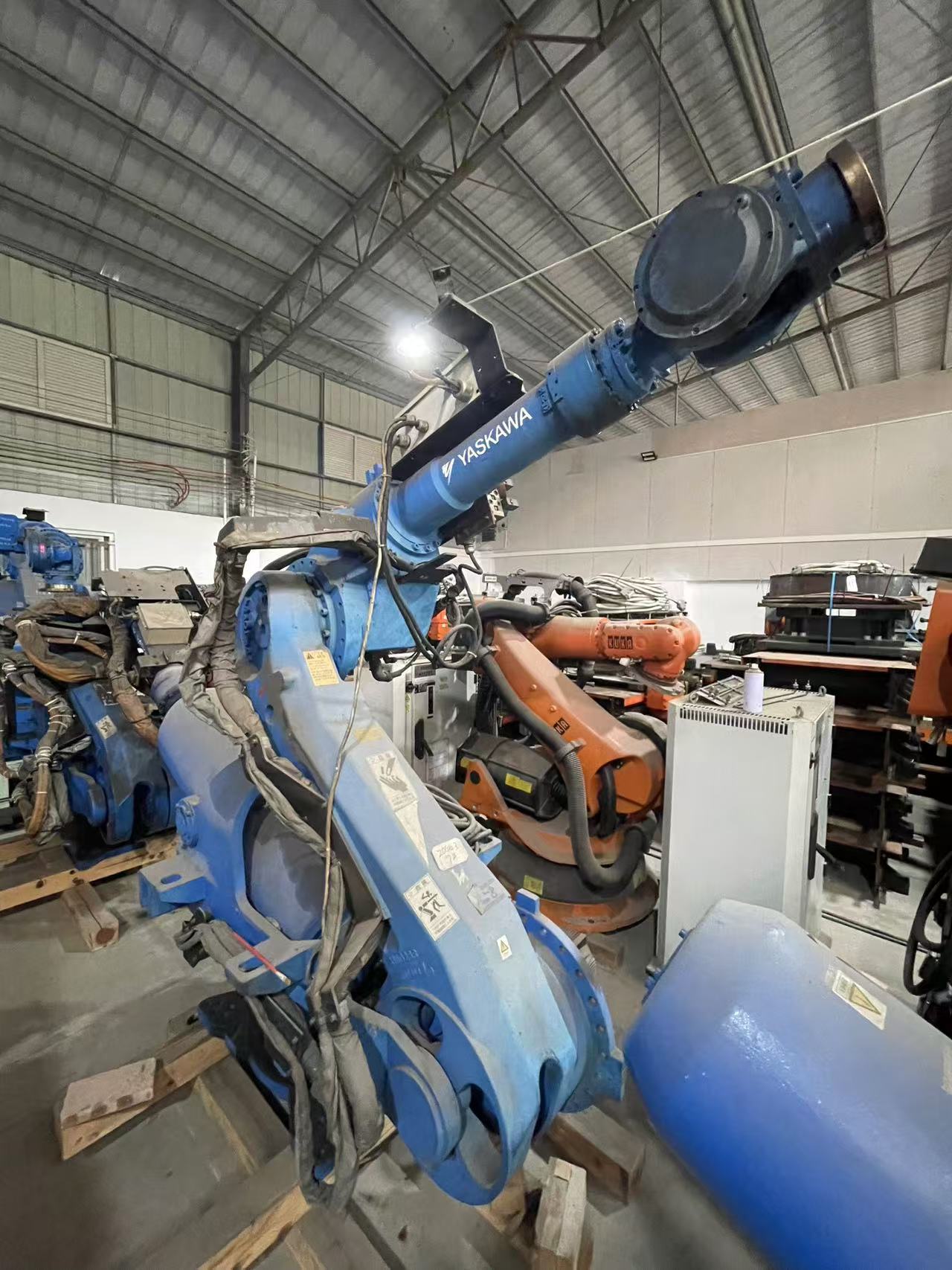

2014 YASKAWA ES165RD industrial robot

YASKAWA MOTOMAN ES165RD is a heavy-duty 6-axis articulated industrial robot designed primarily for spot welding and heavy material handling. Its shelf-mounted configuration provides a large working envelope while helping save valuable factory-floor space. It is particularly suited to automotive production, press tending, machine handling, and large-component automation.

The ES165RD provides a 165 kg payload and approximately 3,140 mm horizontal reach. It offers ±0.2 mm repeatability and weighs approximately 1,540 kg. The robot was designed for the Yaskawa DX100 controller generation.

Key Specifications:

Robot type: 6-axis articulated robot
Payload: 165 kg
Horizontal reach: 3,140 mm
Repeatability: ±0.2 mm
Robot weight: Approx. 1,540 kg
Mounting: Shelf/rack-mounted
Controller: Yaskawa DX100
Typical applications: Spot welding, material handling, press tending, machine tending, palletizing, and heavy-component handling
